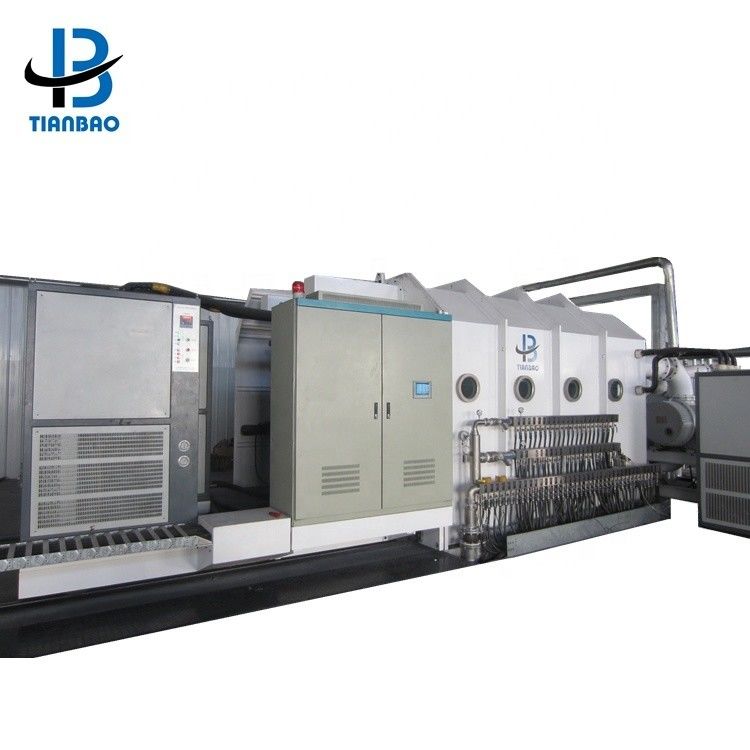

High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating

Product Details

Place of Origin: Shandong, China

Brand Name: Tempo

Payment & Shipping Terms

Price: $200,000.00/sets 1-9 sets

Packaging Details: Wooden Box Containers Pallets specially for export

Supply Ability: 20 Set/Sets per Year

Get Best Price
Highlight:
Type:
Vacuum Metallizer
Substrate:
Iron
Condition:
New
Machine Type:
Vacuum Metallizer
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty Of Core Components:
1 Year
Core Components:
PLC
Coating:
Vacuum Coating
Voltage:
380V
Power:
300KV
Dimension(L*W*H):
20x7x2.8 Or Customized Size
Warranty:
1 Year
Key Selling Points:
Easy To Operate
Applicable Industries:
Manufacturing Plant
Showroom Location:
None
Weight (KG):
20000
Product Name:
Vacuum Metallizer
Application:
Plastic Packing
Technology:
Thermal Evaporation Coating
Advantage:
High-efficiency
Coating Color:
Customers Demand
Coating Material:
BOPP/PET/CPP/PE/PVC/Paper
Control Mode:
PLC+touch Screen Automatic Control
Size:
Cuatomized
Vacuum System:
High Vacuum Diffusion Pump
Brand:
Tempo
Port:
QINGDAO
Type:
Vacuum Metallizer
Substrate:
Iron
Condition:
New
Machine Type:
Vacuum Metallizer
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty Of Core Components:
1 Year
Core Components:
PLC
Coating:
Vacuum Coating
Voltage:
380V
Power:
300KV
Dimension(L*W*H):
20x7x2.8 Or Customized Size
Warranty:
1 Year
Key Selling Points:
Easy To Operate
Applicable Industries:
Manufacturing Plant
Showroom Location:
None
Weight (KG):
20000
Product Name:
Vacuum Metallizer
Application:
Plastic Packing
Technology:
Thermal Evaporation Coating
Advantage:
High-efficiency
Coating Color:
Customers Demand
Coating Material:
BOPP/PET/CPP/PE/PVC/Paper
Control Mode:
PLC+touch Screen Automatic Control
Size:
Cuatomized
Vacuum System:
High Vacuum Diffusion Pump
Brand:
Tempo
Port:
QINGDAO
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating
Product Description
This high Vacuum Metallizer is making the aluminum metal evaporated and deposited on the surface of the rolled plastic film at a high temperature to form a high-luminance aluminized film under vacuum state. Applicable to aluminization of various materials such as high-end packaging color printing materials,reflective materials, anti-counterfeiting holographic films, etc.
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 0
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 1
Details Images
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 2
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 3
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 4
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 5
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 6
1.Using free suspension coating,completely solved the problem of plating line,no trimming,smooth coating without wrinkles,the aluminum layer is uniform without sputtering,hard to break.
2.Vacuum chamber shape is circular withstand pressure evenly.It can withstand greater air pressure and better use of space. It is very energy-saving and can ensure long-term use and stable work.
3.Coating drum with one set of freezer.
4.New design of evaporation source:(Top clip/Staggered)increased evaporation rate of aluminum,easier to clean up,increased the speed of replacing the evaporation boat,saving the time.
5.Two sticks flattening roller.
6.Double coated drum cooling,increased film brightness and aluminum fastness,at the same time, and it doesn't have to be too cold to cool the aluminum film better.Reduced compressor operation and heating time.extends the life of the device,thereby achieving energy saving effects.
7.Using Germany's most advanced digital control system,4 sets frequency conversion servo motor synchronous drive,constant tension winding.
8.The film roll can be automatically wound up during the winding process.
9.System integrated PLC control stepper motor single,unite wire feeding system.
10.Evaporation system using evaporation boat heating.
11.The device has an evaporation source automatic control baffle,evaporation source window strobe.

Specification
Product Name
Free Span Aluminum Vacuum Metallizer For PET CPP Films
Size
Customized Size
Equipment Data
Weight:20Tons/ Power:370KW / Voltage:380V
 Warranty
1 Year
Film-forming Species
Aluminium Film Coating
Technology
Vacuum Evaporation Coating
Vacuum Time
Pumping For The Empty Atmosphere To The 5*10-3pa Less Than 15 Minutes
Operating System
Touch Screen +PLC
Related Products
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 7
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 8
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 9
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 10
Company Profile

High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 11
Product Usage
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 12
1.Vacuum Metallizing Machine For Plastic Film Roll 2.Vacuum Metallizing Coating Machine For Aluminized Packaging Film 3.Vacuum Metalizing Equipment Aluminum Coating Machine 4.PET/CPP/BOPP/PVC Films
Packing & Delivery
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 13
High Vacuum Diffusion Pump Roll to Roll Vacuum Metallizer for Cuatomized Coating 14
FAQ
Q1:The difference between Vacuum Metallizer and sputtering coating? A: Vacuum sputter coating is more uniform than evaporative coating Q2:Can i visit your factory? A:Yes, welcome to visit our factory, Address: 3988. Tokyo Road Economic development zone Qingzhou city,Shandong province,China (Mainland) Q3:How do you control your quality? A:Each process will be tested by our own inspection department to make sure the product quality.
